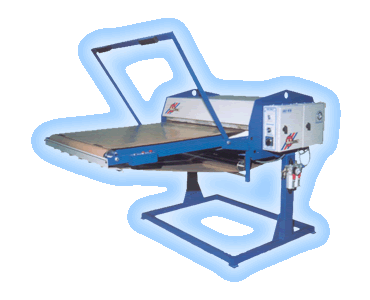

Pneumatic fusing press for thermoadhesive interlining |
||||||
|
|
With this new model we extend our offer of fusing presses for the garment industry. Pneumaticaly driven with automatic regulation of time, temperature and pressure. In this model the pressure is exerted by an ingenious air cushion that enables a very accurate regulation giving low and very high pressure. Owing to this detail this machine enlarges the possibilities of application of a wide range of interlinings with excellent results. The conveyor advance, by means of a four station belt, allows a good working rhythm and permits the cooling of the fused pieces. Only one operator is needed to handle the machine. |
|||||
| Specification | 9/6 | 9/6 | Dimensions | 9/6 | 9/6 | |
| Plate dimensions | 90 x 60 cm | 120 x 60 cm | Length | 190 cm | 190 cm | |
| Electropneumatic drive, three phase current supply | 220 V - 380 V | 220 V - 380 V | Width | 120 cm | 152 cm | |
| Heating plate | 9,000 W | 12,750 W | Height | 115 cm | 115 cm | |
| Adjustable pressure | 3 Kg/cm2 | Weight | 400 Kg | 615 Kg | ||
| Temperature control | 0°C - 200°C | 0°C - 200°C | ||||
| Consumption / hour | 3,600 W | 5,100 W | ||||
| Air consumption | 30 l/min | 40 l/min | ||||
