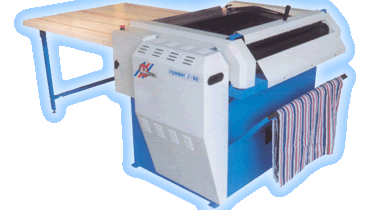

Continuous feed fusing press for thermoadhesive interlining

Electropneumatic drive with automatic regulation of pressure, temperature and speed.

The unloading of the fused material can be done from the same working place for small pieces, and with an automatic stacker at the rear of the machine for big pieces.

When small piecesare being thermofixed, it's possible to work with one person on each side of the table simultaneously.
Specification S-60 S-90 Dimensions S-60 S-90
Working width 60 cm 90 cm Length 245 cm 245 cm
Electropneumatic drive, three-phase supply 220 V - 380 V 220 V - 380 V Width 105 cm 135 cm
Power rating 5,400 W 8,100 W Height 115 cm 115 cm
Temperature control 0°C - 200°C 0°C - 200°C Weight 300 Kg 380 Kg
Motor 0.5 CV 0.5 CV
